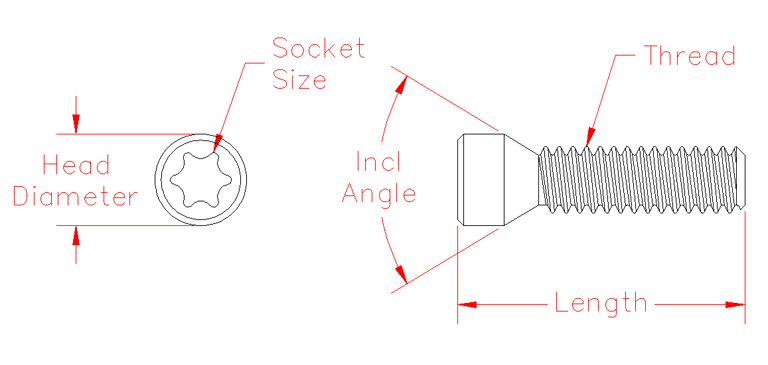

Ex-Celler-8 Insert Screw
 |
| Part Number | Head Diameter |
Length | Thread | Included Angle |
Socket Size |
Torque Spec. |
|---|---|---|---|---|---|---|
| AEFT-045C | .218 | .670 | M4 x .7 | 62 Deg. | Torx-15 | 45 in/lbs |
| AEFT-052C | .255 | .790 | M5 x .8 | 42 Deg. | Torx-20 | 45 in/lbs |
|
| Part Number | Head Diameter |
Length | Thread | Included Angle |
Socket Size |
Torque Spec. |
|---|---|---|---|---|---|---|
| AEFT-045C | .218 | .670 | M4 x .7 | 62 Deg. | Torx-15 | 45 in/lbs |
| AEFT-052C | .255 | .790 | M5 x .8 | 42 Deg. | Torx-20 | 45 in/lbs |
